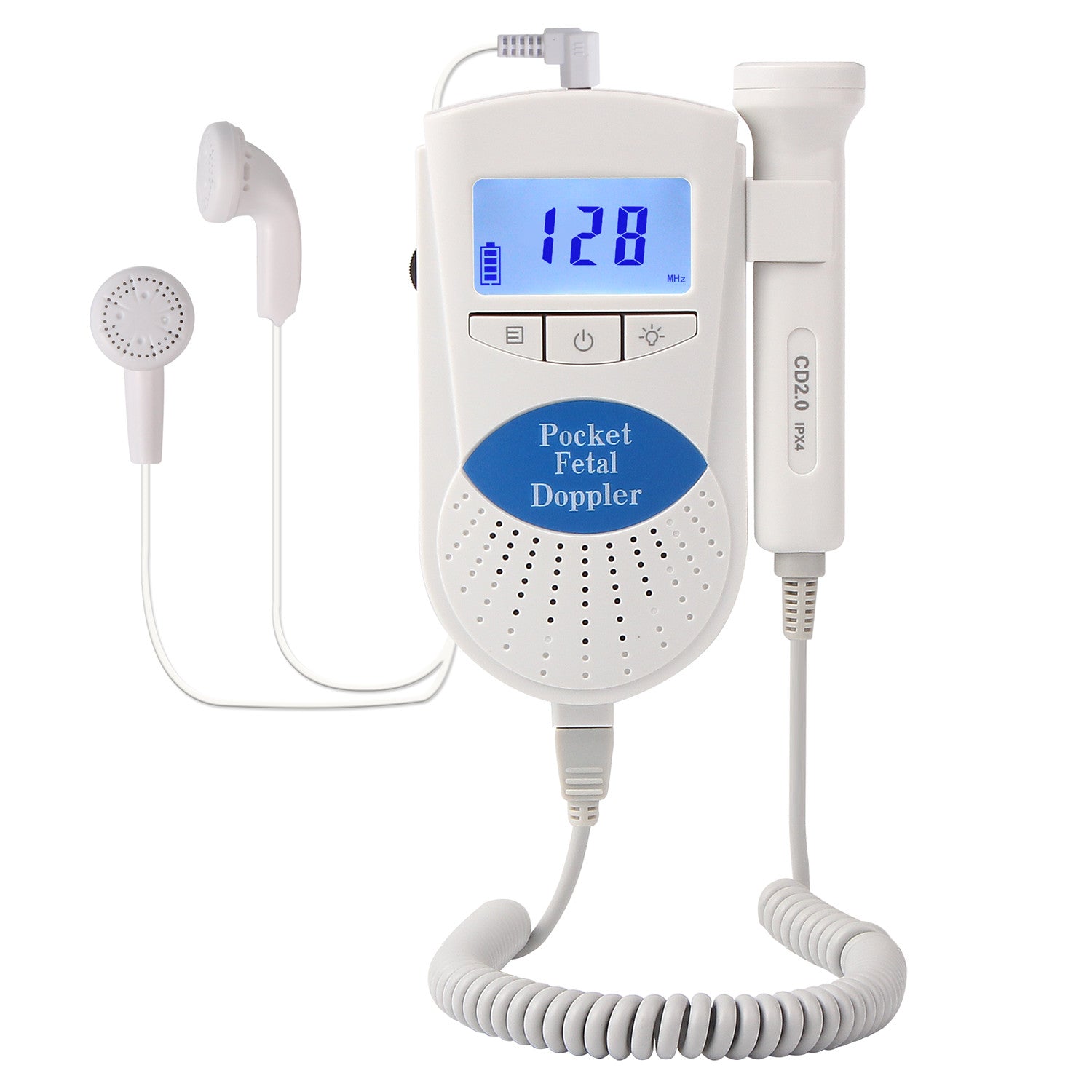

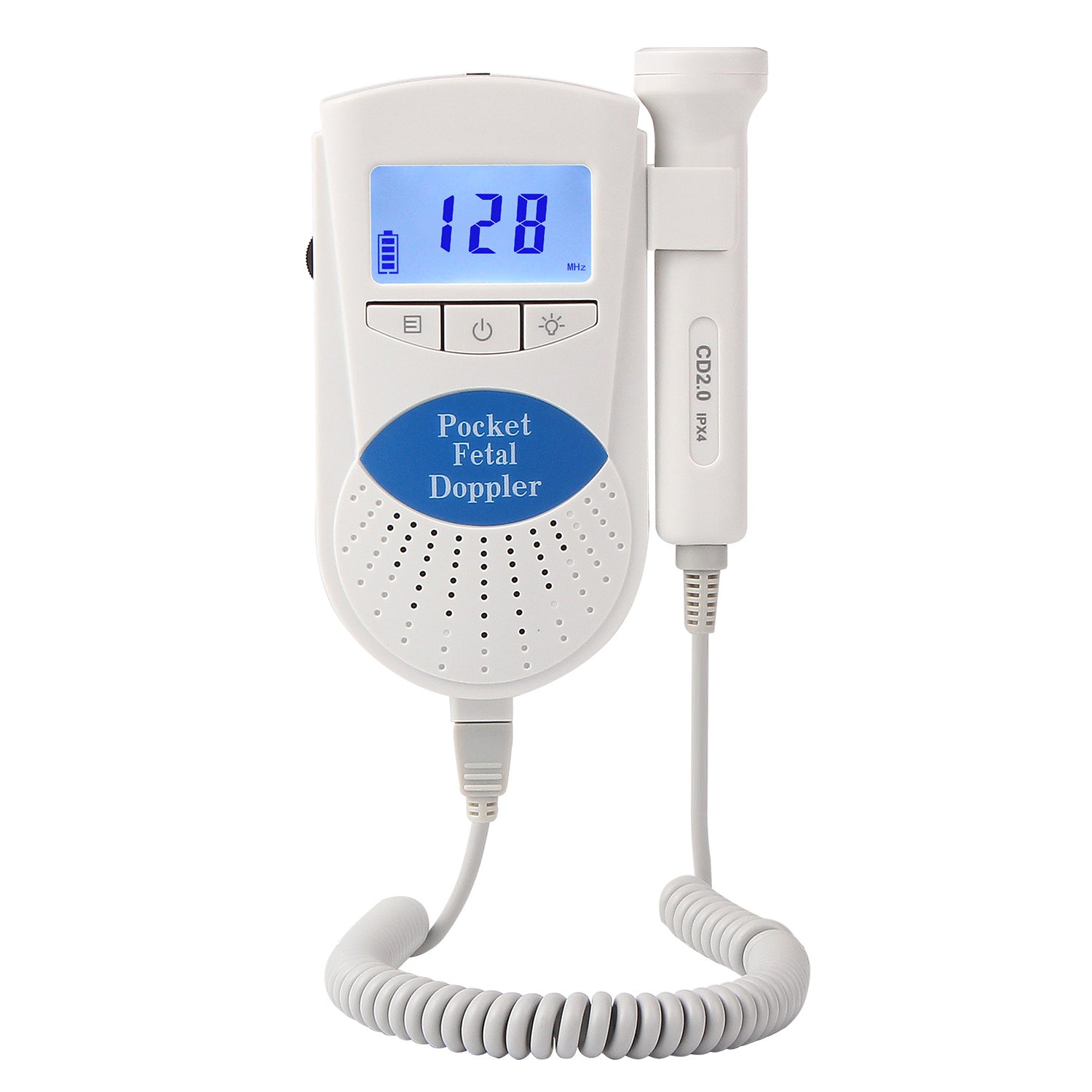

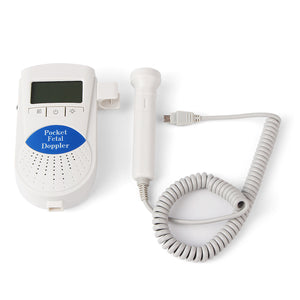

Baby Fetal Doppler Monitor Sound Amplifier

Pregnancy is one of life's most wonderful, yet scariest experiences. You look forward with anticipation leading towards the birth of your baby. Every kick makes you smile, but as a mother, it is hard not to worry about pretty much everything and especially about your sweet baby.

Our Baby Monitor Sound Amplifier will give you the joy of listening to your little one's heartbeat as early as 12 weeks. It is compact and easy to carry. It has three operating modes: Real-time FHR display, Average FHR display, and manual mode. It has a built-in speaker for audio output and has great audio quality.

Simply place the doppler probe onto your baby bump, and you are ready to listen


Features:

  • FDA & CE Approved
  • Listen through the powerful built-in speaker or with headphones
  • Fetal Beats per Minute (BPM) display

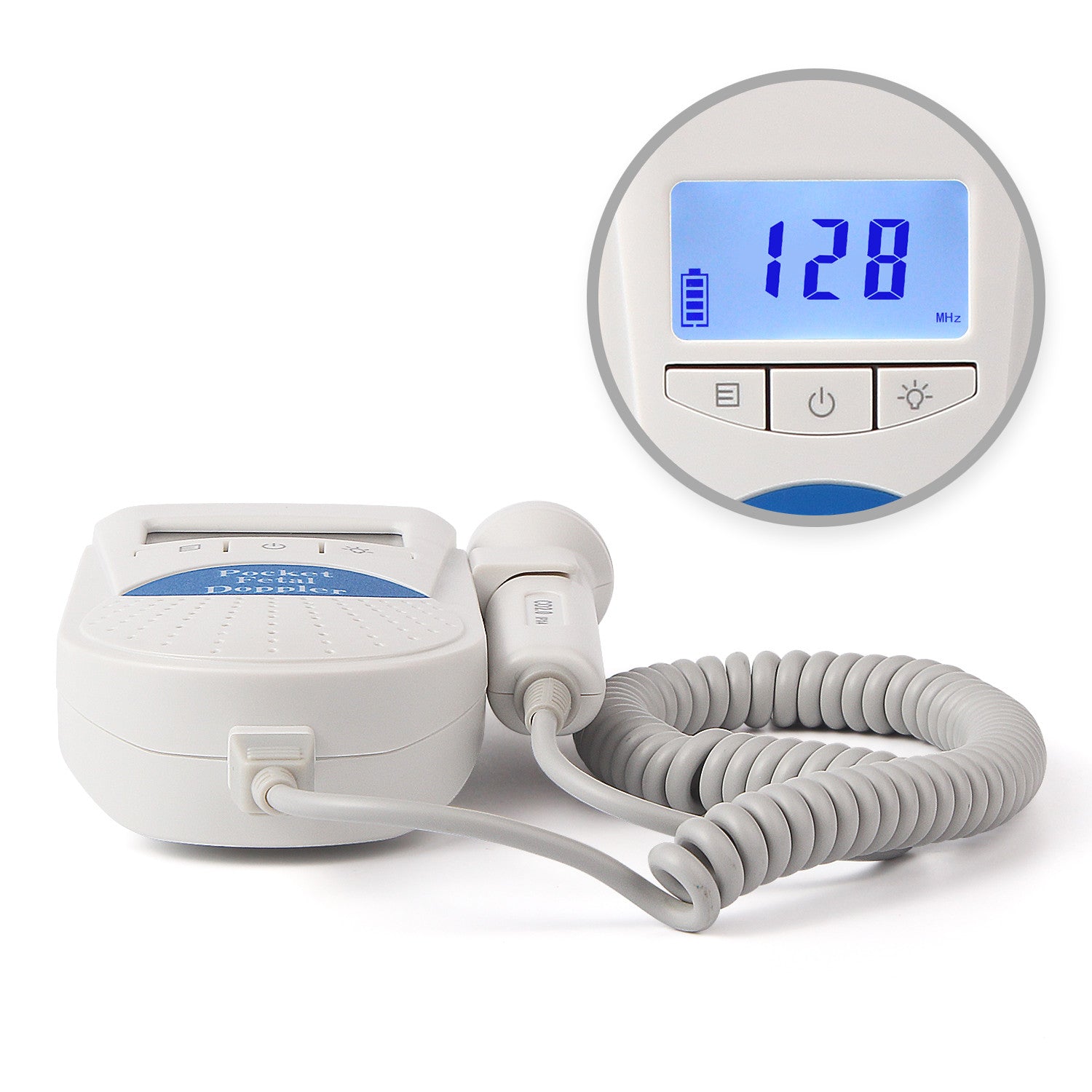

  • Easy to read LCD screen with on/off backlight mode
  • Auto-off feature & low battery consumption to ensures many hours of usage
  • Battery icon indicating remaining battery life (AA batteries)
  • Weighs less than 1/2 a pound
  • Compact design with buttons designed to withstand repeated usage without wearing or breaking

Three modes of Operation:

  • Mode 1: a heart icon is displayed when the heartbeat is detected and the real-time heart rate is displayed numerically
  • Mode 2: a heart icon is displayed when the heartbeat is detected and it averages the heart rate for a more stable reading
  • Mode 3: this mode allows the user to calculate an average heart rate over a specific period of time by manually pushing a button to start & stop the time

Package Includes:

  • doppler body
  • 2Mhz or 8Mhz
  •  60 Gram ultrasound gel tube (good for over 50 tests)
  • 2 AA batteries
  • 1-year warranty

Recording Cable (optional)
Digital sound recording. You will be able to record those first sounds for life, record your unborn baby's heartbeat. It not only can be recorded by the computer but also stored on a cassette or CD.

Safety:

Complies with: IEC 60601-1:1988+A1:1991+A2:1995 Classification:
* Anti-electroshock Type: Internally powered equipment.
* Anti-electroshock Degree: Type B applied part
* Harmful Liquid Proof Degree:
* Main unit: Ordinary equipment (sealed equipment without liquid proof).
* Probe: Prevent from water splashing, degree of protection: IPX4.
*Degree of Safety in Presence of Flammable Gases: Equipment not suitable for use in
* presence of flammable gases.
* Working System: Continuous running equipment.
* EMC: Group I Class B.
* Suitable Using Range: Suitable for use after the 12th week of pregnancy.


Physical Characteristic

* Size: 135mm (Length) *92mm (Width) *29 (Height) mm
* Weight: About 245g (including batteries)

Working Environment

* Temperature: +5℃ - +40℃
* Humidity: <=80%
* Atmospheric Pressure: 70 kPa - l06kPa Transport and Storage:
* Temperature: -10℃ - +55℃
* Humidity: <=93%
* Atmospheric Pressure: 50 kPa-l06kPa Display: 45mm * 25mm LCD display
* FHR Measuring Range: 50-240BPM (BPM: beat per minute)
* Resolution: 1BPM
* Accuracy: (+/-)2BPM
* Power consumption:<0.8W
* Auto Shut-OFF: After 1 minute no signal, power off automatically.
* Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).

Probe:
* Nominal Frequency: 2.0MHz or 8Mhz
* Working Frequency: 2.0MHz(+/-)10% or 3Mhz
* P-: <0.5MPa
* Iob: <10 mW/cm2
* Ispta: <50mW/cm2
* Ultrasonic Output Intensity: Isata<5 mW/cm2
* Ultrasonic Output Power: P < 10 mW
* Working Mode: Continuous wave Doppler
* Effective Radiating Area of Transducer: 157mm2 (+/-)15%

PACKAGE INCLUDES:

⏩ 1 x Portable Pocket Fetal Doppler

⏩  1 x Doppler Probe

⏩  1 x Ultrasound Gel 60 g

⏩  1 x Manual
